Breezair Evaporative Cooling
Direct Evaporative Cooling
Breezair adiabatic cooling uses evaporation to cool the air. Based on the principles of evaporation, hot and dry outside air is drawn through water-soaked cooling pads. As the air is pulled through these pads, the water evaporates and the heat in the air is absorbed, which lowers the air temperature. A fan then pushes the cool air throughout the building via a network of ducts. The key to effective adiabatic cooling is to ensure saturation of all cooling pads during operation and to size and design the system’s fan and motor to deliver the appropriate airflow for the space. Adiabatic cooling describes this natural phenomenon, however, there are many other terms that we might hear with the same meaning including evaporative air conditioning, evaporative cooling, ducted evaporative cooling, swamp coolers, and desert coolers.
Breezair TBS 580
Discover the key features
- 10,010 m³/h airflow (Industry standard, 80 Pa)
- Axial fan
- PSC motor
- 16.8 kW Cooling Capacity
- 1.2 kW max power consumption
Breezair TBSI 580
Discover the key features
The SuperStealth™ axial fan is specifically designed to be more energy efficient and even quieter than the standard Stealth fan.
- 10,910 m³/h airflow (Industry standard, 80 Pa)
- Axial fan
- Inverter motor
- 18.4 kW Cooling Capacity
- 1.5 kW max power consumption
Breezair EXS 220
Discover the key features
The Breezair Supercool EXS 220 series is ideal for ducting systems with high static pressure, particularly commercial applications.
- 9,140 m³/h airflow (Industry standard, 80 Pa)
- Centrifugal fan
- Direct Drive Inverter motor
- 15.1 kW Cooling Capacity
- 1.8 kW max power consumption
Cooling Products
Beat the heat with our wide range of residential cooling solutions designed to provide ultimate comfort.
Heating Products
Discover a range of effective
heating solutions to keep you warm
and cosy.
Combined Products
Experience the best of both worlds
with our combined heating and
cooling solutions.

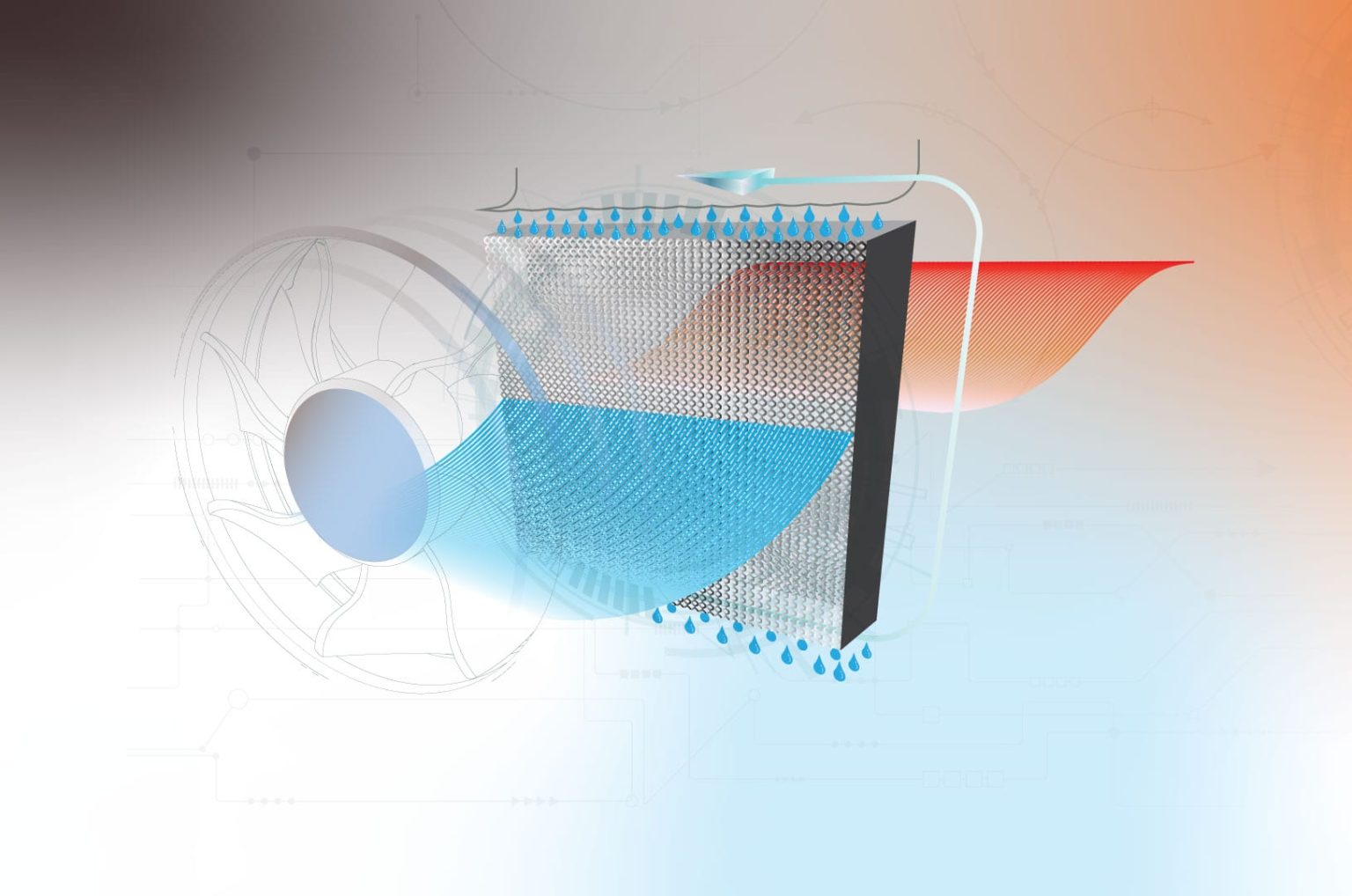

How does Breezair adiabatic cooling work?
As said before, Breezair adiabatic cooling uses evaporation to cool the air.
Hot air enters the cooling unit on the roof where it is filtered and cooled as it passes through specially designed moistened Chillcel™ pads. As the air passes through the cooling pads, the water evaporates and the heat in the air is absorbed, which lowers the air temperature. Finally, a fan pushes the cool air throughout the building via a network of ducts.
Evaporative Cooling

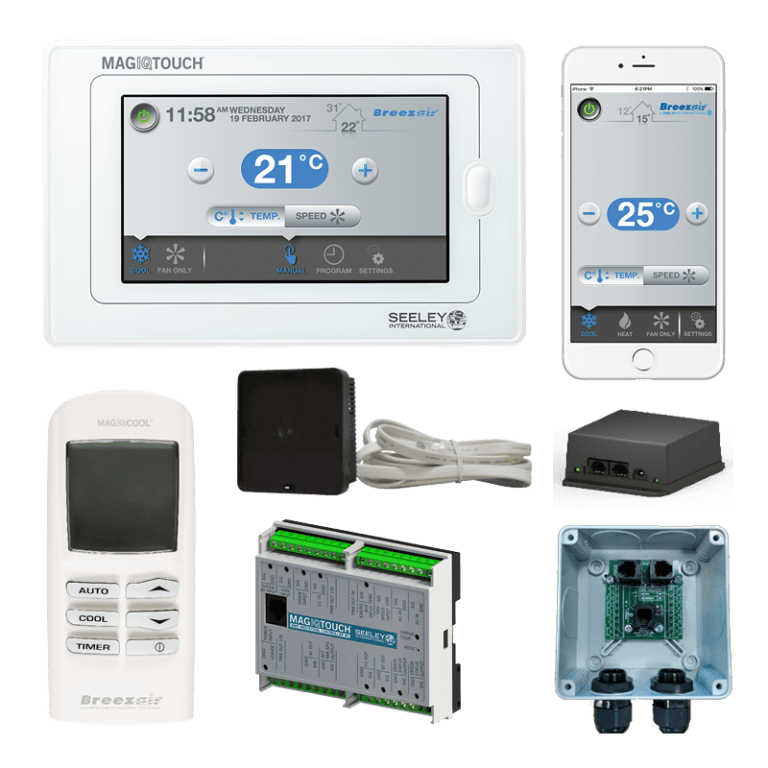

Seeley International has designed the most advanced technology to give you full control of your coolers in the smartest way. In fact, easy to connect, all products of the MagIQtouch® Controller suite are also easy to install & intuitive. Not just Supercool, but SuperSmart!
From the MagIQtouch touch screen controller, to the smart indoor and external air sensor, next generation control is available for your company. Moreover, you can connect the coolers to BMS system, for a full integration experience.
