Breezair Supercool TBSI 580
Evaporative Cooler
The world’s first high performance inverter axial evaporative cooler

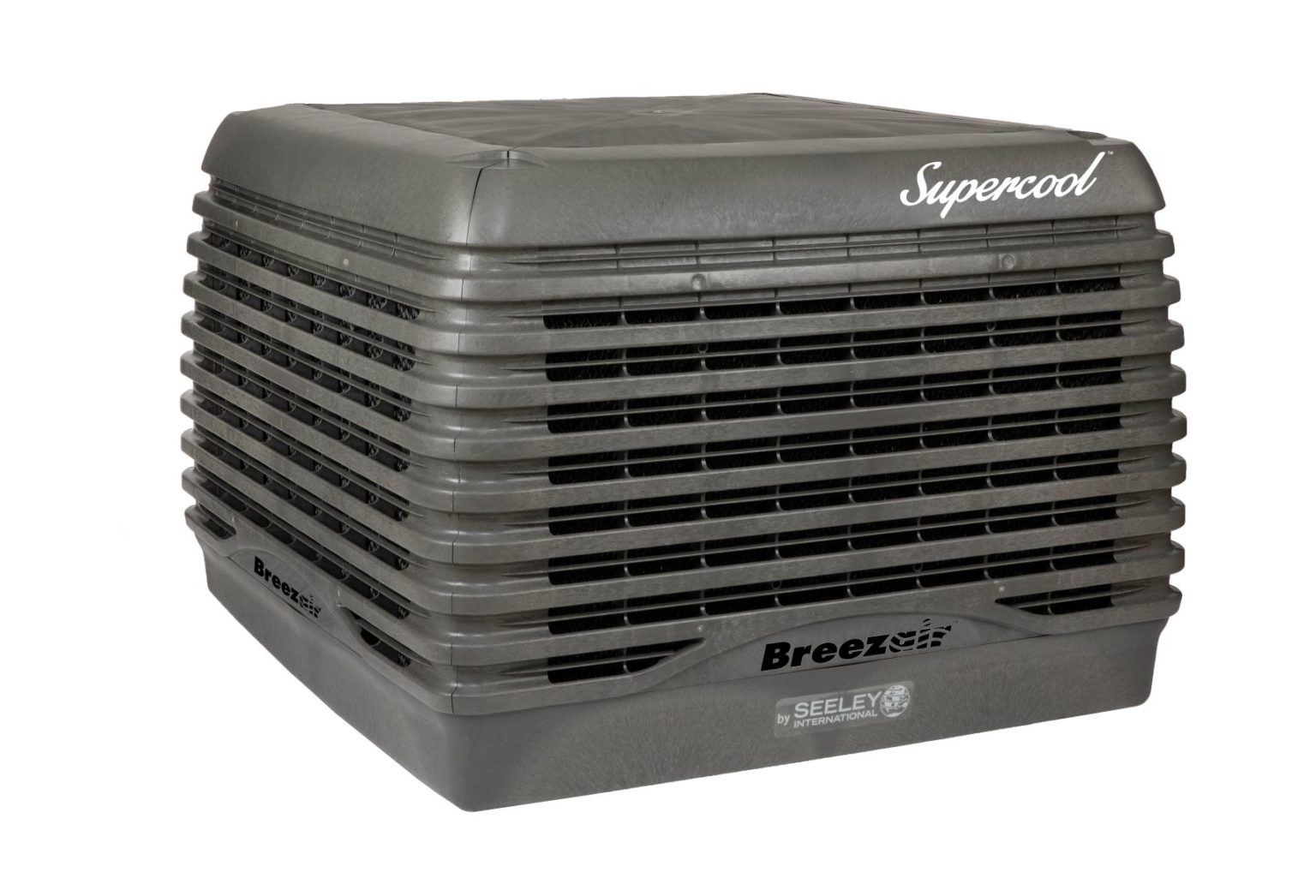

The Breezair Supercool TBSI 580 Evaporative Coolerr
The Breezair Superstealth TBSI 580 series is the world’s first high performance inverter axial evaporative cooler.
It is ideal for buildings that need fresh air input; its innovative technology uses up to 80% less energy without using chemical refrigerants.
- Cooling capacity and efficiency increases as temperature increases
- Low maintenance
- The Prematuf™ corrosion-proof cabinet will not corrode or rust
- The super efficient inverter motor minimizes energy consumption at low speed
- Fitted with the latest Black Opal™ MINI-CELL^ CHILLCEL® Pads Technology to deliver optimum cooling efficiency
- An optional MagIQtouch™ controller can operate up to 60 coolers and includes in-built installation Wizard, making the operating process simple
- The optional external air sensor intuitively optimizes water and energy usage based on outside ambient conditions. Extends the life of the cooler by automatically draining the water tank when temperature nears freezing
- The Breezair WATERManager ensures optimum machine life with minimum maintenance by constantly checking water quality
| Model | Cooling Capacity (kW) | Power Consumption (W) | Airflow at 80 Pa (m³/h) | Width (mm) | Depth (mm) | Height (mm) | Operating Weight (kg) |
|---|---|---|---|---|---|---|---|
| TBSI580 | 18.4 | 1500 | 10910 | 1150 | 1150 | 902 | 94 |
Note: specifications subject to change.
*Cooling capacity measured to Australian Standard AS2913-2000, ambient of 38°C dry bulb & 21°C wet bulb, with room exit temperature of 27.4°C.
**Shipping Dimensions (mm) including pallet.
Breezair Supercool TBS 580 – Product Brochures
Breezair Supercool TBS 580 – Technical Documents
Harness the power power of Breezair Evaporative Cooling
Evaporative Cooling Case Studies

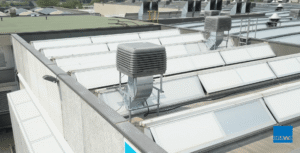

Brawo: cooling manufacturing facilities with Breezair evaporative cooling
Background Brawo is a company specialized in hot stamping and...
Read More

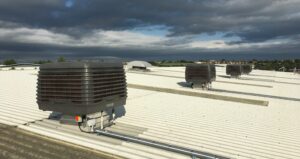

Bluetree Group Print Shop cooling
The problem One of the UK’s fastest growing print shops...
Read More

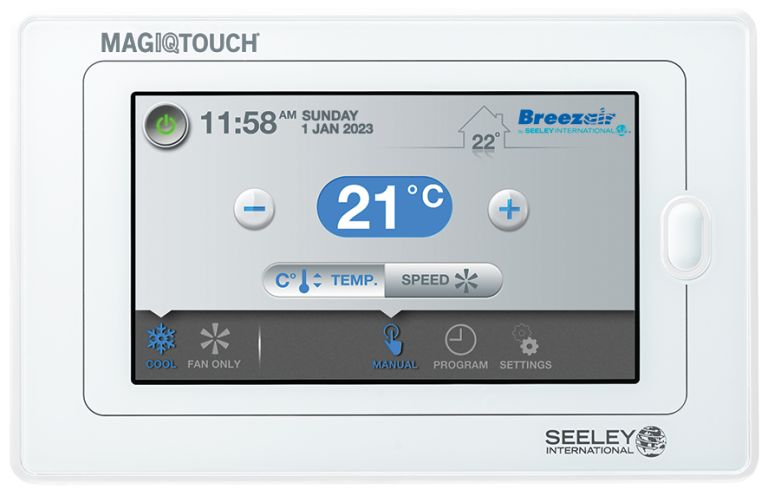

Touch screen controller. PIN access available Ability to control up to 60 coolers. Program mode (7-day, 4 time period program). Allows connectivity to External air sensor. Allows connectivity to Remote indoor temperature sensor and External Air Sensor.
